The VST GUI for the plugin. This is needed because VST3 requires an IPlugView GUI, which is VST3 specific (involves VST3 SDK files) More...

#include <vst3plugin.h>

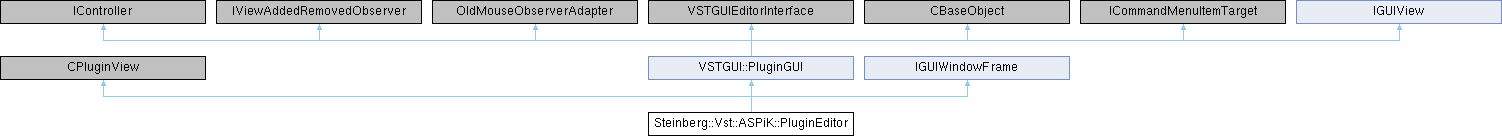

Inheritance diagram for Steinberg::Vst::ASPiK::PluginEditor:

Public Types
typedef std::map< int32_t, VST3UpdateHandler * >	UpdaterHandlerMap

Public Member Functions
	PluginEditor (VSTGUI::UTF8StringPtr _xmlFile, PluginCore _pluginCore, GUIPluginConnector _guiPluginConnector, PluginHostConnector _pluginHostConnector, VST3Plugin editController)
	ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

virtual	~PluginEditor ()
	ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

const ViewRect &	getRect () const

void	setRect (const ViewRect &r)

bool	isAttached () const

virtual void	attachedToParent () override

virtual void	removedFromParent () override

virtual tresult PLUGIN_API	attached (void *parent, FIDString type) override
	ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

virtual tresult PLUGIN_API	removed () override
	ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

virtual tresult PLUGIN_API	onWheel (float distance) override

virtual tresult PLUGIN_API	isPlatformTypeSupported (FIDString type) override
	ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

virtual tresult PLUGIN_API	onSize (ViewRect *newSize) override
	ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

virtual tresult PLUGIN_API	getSize (ViewRect *size) override
	ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

virtual tresult PLUGIN_API	onFocus (TBool) override

virtual tresult PLUGIN_API	setFrame (IPlugFrame *frame) override
	ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

virtual tresult PLUGIN_API	canResize () override

virtual tresult PLUGIN_API	checkSizeConstraint (ViewRect *rect) override

virtual bool	setWindowFrameSize (double left=0, double top=0, double right=0, double bottom=0) override

virtual bool	getWindowFrameSize (double &left, double &top, double &right, double &bottom) override

Public Member Functions inherited from VSTGUI::PluginGUI
	PluginGUI (UTF8StringPtr _xmlFile)
	PluginGUI constructor; note that this maintains both Mac and Windows contexts, the bundle ref for Mac and the external void* for Windows.

virtual	~PluginGUI ()
	PluginGUI destructor.

bool	open (UTF8StringPtr _viewName, void parent, const std::vector< PluginParameter > pluginParameterPtr, const PlatformType &platformType=PlatformType::kDefaultNative, IGUIPluginConnector _guiPluginConnector=nullptr, void *data=nullptr)
	creates the GUI control objects, creates outer frame, inserts contents into window

void	close ()
	prepares the GUI control objects for destruction, cleans up

void	syncGUIControl (uint32_t controlID)
	safely sets the GUI control value based on the plugin parameter value

void	getSize (float &width, float &height)
	returns the size into the pass-by-reference variables

void	scaleGUISize (uint32_t controlValue)
	scales the GUI; this is the handler for the special scaling GUI control

void	writeToPresetFile ()
	writes the current state of all GUI controls into a text file so that yuu can simply cut and paste the C++ code into the core object file.

void	clearGUIPluginConnector ()

void	setAAXViewContainer (AAX_IViewContainer *_aaxViewContainer)
	AAX ONLY: plugin shell GUI object sets this after creation.

void	setAAXParameterFromGUIControl (CControl *control, int tag, float actualValue, float normalizedValue)
	set the plugin shelll parameter from GUI control using thread-safe mechanism

void	updateGUIControlAAX (int tag, float actualPluginValue, float normalizedValue=0.f, bool useNormalized=false)
	set the GUI control from the plugin shell GUI object (thread-safe)

void	dispatchAUControlChange (int tag, float actualPluginValue, int message=-1, bool fromEventListener=false)
	set the GUI control from the AU event generator; this is part of the thread-safe event system. This gets called when automation is running.

void	setAU (AudioUnit inAU)

CMessageResult	notify (CBaseObject *sender, IdStringPtr message) override
	incoming VSTGUI4 message handler

virtual void	valueChanged (VSTGUI::CControl *pControl) override
	THE function that all controls pour their control changes into. The result of this function is to push the GUI control change safely into the plugin shell owner.

virtual int32_t	controlModifierClicked (VSTGUI::CControl *pControl, VSTGUI::CButtonState button) override
	return 1 if you want the control to not handle it, otherwise 0

virtual void	controlBeginEdit (VSTGUI::CControl *pControl) override
	start of control/auomation notification

virtual void	controlEndEdit (VSTGUI::CControl *pControl) override
	end of control/auomation notification

virtual void	controlTagWillChange (VSTGUI::CControl *pControl) override
	called when a control is being removed from the GUI, or when it is being created (step 1)

virtual void	controlTagDidChange (VSTGUI::CControl *pControl) override
	called when a control is being created on the GUI (step 2)

CView *	createUserCustomView (std::string viewname, const CRect rect, IControlListener *listener, int32_t tag)
	add your custom views here; this is where you can create and register the views outside of the createView( ) method below.

CView *	createView (const UIAttributes &attributes, const IUIDescription *description) override
	this is called for every view obeject in the XML file that will be visible to check and see if you want to supply your own object, that you create with the new operator; that object takes the place of the stock GUI object, allowing you to customize the view behavior. This is called the "Custom View" paradigm and along with the sub-controller make VSTGUI4 extremely powerful.

IController *	createSubController (UTF8StringPtr name, const IUIDescription *description) override
	for advanced users: you can create and even register sub-controllers here

ControlUpdateReceiver *	getControlUpdateReceiver (int32_t tag) const
	find the receiver for a given tag; there can be only one receiver for any tag

void	onViewAdded (CFrame frame, CView view) override

void	onViewRemoved (CFrame frame, CView view) override
	called before GUI control is removed from the view

void	onMouseEntered (CView view, CFrame frame) override

void	onMouseExited (CView view, CFrame frame) override

CMouseEventResult	onMouseDown (CFrame *frame, const CPoint &where, const CButtonState &buttons) override
	message handler for mouse down event

CMouseEventResult	onMouseMoved (CFrame *frame, const CPoint &where, const CButtonState &buttons) override
	message handler for mouse move event

virtual bool	validateCommandMenuItem (CCommandMenuItem *item) override
	validates menu item selections to prevent crashing

virtual bool	onCommandMenuItemSelected (CCommandMenuItem *item) override
	message handler for GUI Designer menu

virtual void	setGUIWindowFrame (IGUIWindowFrame *frame) override
	set the interface pointer for resizing from the GUI

bool	hasWriteableControl (CControl *control)
	check to see if we already store this meter control

void	checkAddWriteableControl (PluginParameter piParam, CControl control)
	check to see if we already store this meter control and add it if we don't

void	checkRemoveWriteableControl (CControl *control)
	check to see if we already store this meter control and remove it if we do

void	deleteControlUpdateReceivers ()
	delete all reciever objects

void	forgetWriteableControls ()
	forget all writeable (neter) controls

bool	hasICustomView (CView *view)
	simple helper function to test view for ICustomView

bool	hasICustomView (IController *subController)
	simple helper function to test sub-controller for ICustomView

virtual void	setGUIWindowFrame (IGUIWindowFrame *frame)=0

Public Member Functions inherited from IGUIWindowFrame
virtual bool	setWindowFrameSize (double left=0, double top=0, double right=0, double bottom=0)=0

virtual bool	getWindowFrameSize (double &left, double &top, double &right, double &bottom)=0

virtual void	enableGUIDesigner (bool enable)

Public Attributes
UpdaterHandlerMap	updateHandlers

IPlugFrame *	plugFrame

Protected Attributes
PluginCore *	pluginCore = nullptr
	the core

GUIPluginConnector *	guiPluginConnector = nullptr
	GUI Plugin interface.

PluginHostConnector *	pluginHostConnector = nullptr
	Plugin Host interface.

VST3Plugin *	editController = nullptr
	parent VST3

Protected Attributes inherited from VSTGUI::PluginGUI
IGUIPluginConnector *	guiPluginConnector = nullptr
	the plugin shell interface that arrives with the open( ) function; OK if NULL for standalone GUIs

UIDescription *	description = nullptr
	the description version of the XML file

std::string	viewName
	name

std::string	xmlFile
	the XML file name

uint32_t	numUIControls = 0
	control counter

double	zoomFactor = 1.0
	scaling factor for built-in scaling

CVSTGUITimer *	timer
	timer object (this is platform dependent)

CPoint	minSize
	the min size of the GUI window

CPoint	maxSize
	the max size of the GUI window

CRect	nonEditRect
	non-edit area for GUI designer

bool	showGUIEditor = false
	show the GUI designer

bool	createNewView = true
	show the normal GUI

double	guiDesignerWidth
	GUI Designer's frame size.

double	guiDesignerHeight
	GUI Designer's frame size.

float	guiWidth
	embedded GUI size

float	guiHeight
	embedded GUI size

IGUIWindowFrame *	guiWindowFrame = nullptr
	interface to allow plugin shell to resize our window

CFrame *	guiEditorFrame = nullptr
	pointer to our frame

uint32_t	knobAction = kLinearMode
	knob mode

AudioUnit	m_AU
	AU ONLY: the AU plugin reference.

AUEventListenerRef	AUEventListener
	AU ONLY: the event listener token.

Additional Inherited Members
Static Public Member Functions inherited from VSTGUI::PluginGUI
static void	initVSTGUILib (void *hInstance)
	VSTGUI4 Library Initializer for AAX/Windows only.

static void	exitVSTGUILib ()

static bool	parseSize (const std::string &str, CPoint &point)
	simple helper function to get size from string

Protected Member Functions inherited from VSTGUI::PluginGUI
virtual void	idle ()
	perform idling operation; called directly from timer thread

void	preCreateGUI ()
	one-time pre-create init, currently used for AU only

bool	createGUI (bool bShowGUIEditor)
	creates either the GUI or the GUI Designer

void	save (bool saveAs=false)
	save GUI state in XML file

virtual int32_t	getKnobMode () const override
	returns mode

void	deleteGUIControlList ()

PluginParameter *	getGuiControlWithTag (int tag)
	find the local PluginParameter that is connected to the same control ID

std::string	getGUIDesignerSize ()
	get size string

int	getControlID_WithMouseCoords (const CPoint &where)
	control finder, for AAX only, part of Pro Tools automation keyboard shortcut

CControl *	getControl_WithMouseCoords (const CPoint &where)
	control finder, for AAX only, part of Pro Tools automation keyboard shortcut

CMouseEventResult	sendAAXMouseDown (int controlID, const CButtonState &buttons)
	mouse down handler for Pro Tools keyboard shortcuts

CMouseEventResult	sendAAXMouseMoved (int controlID, const CButtonState &buttons, const CPoint &where)
	mouse moved handler for Pro Tools keyboard shortcuts

CMouseEventResult	sendAUMouseDown (CControl *control, const CButtonState &buttons)
	mouse down handler for AU automation

CMouseEventResult	sendAUMouseMoved (CControl *control, const CButtonState &buttons, const CPoint &where)

void	setPluginParameterFromGUIControl (CControl *control, int tag, float actualValue, float normalizedValue)
	safely set a plugin shell parameter with a GUI control

void	setAUEventFromGUIControl (CControl *control, int tag, float normalizedValue)
	set the AU event from the GUI congrol; this is part of the thread-safe event system. This is called to safely set the GUI control value on the plugin shell's parameter list.

void	setVSTParameterFromGUIControl (CControl *control, int tag, float actualValue, float normalizedValue)
	set the VST parameter from the GUI control

void	updateGUIControlVST (int tag, float normalizedValue)
	set the GUI control from the VST parameter

void	setRAFXParameterFromGUIControl (CControl *control, int tag, float actualValue, float normalizedValue)
	set the RAFX2 parameter from the GUI control

void	updateGUIControlRAFX (int tag, float normalizedValue)
	set the GUI control from the RAFX2 parameter

Detailed Description

The VST GUI for the plugin. This is needed because VST3 requires an IPlugView GUI, which is VST3 specific (involves VST3 SDK files)

Author: Will Pirkle http://www.willpirkle.com

Remarks: This object is included in Designing Audio Effects Plugins in C++ 2nd Ed. by Will Pirkle

Version: Revision : 1.0

Date: Date : 2018 / 09 / 7

Constructor & Destructor Documentation

◆ PluginEditor()

Steinberg::Vst::ASPiK::PluginEditor::PluginEditor	(	VSTGUI::UTF8StringPtr	_xmlFile,
		PluginCore *	_pluginCore,
		GUIPluginConnector *	_guiPluginConnector,
		PluginHostConnector *	_pluginHostConnector,
		VST3Plugin *	_editController
	)

ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

NOTES:

see Designing Audio Effects in C++ 2nd Ed. by Will Pirkle for more information and a VST3 Programming Guide
see VST3 SDK Documentation for more information on this function and its parameters

◆ ~PluginEditor()

Steinberg::Vst::ASPiK::PluginEditor::~PluginEditor ( )

virtual

ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

NOTES:

see Designing Audio Effects in C++ 2nd Ed. by Will Pirkle for more information and a VST3 Programming Guide
see VST3 SDK Documentation for more information on this function and its parameters

Member Function Documentation

◆ attached()

tresult PLUGIN_API Steinberg::Vst::ASPiK::PluginEditor::attached	(	void *	parent,
		FIDString	type
	)

overridevirtual

ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

NOTES:

see Designing Audio Effects in C++ 2nd Ed. by Will Pirkle for more information and a VST3 Programming Guide
see VST3 SDK Documentation for more information on this function and its parameters

◆ getSize()

tresult PLUGIN_API Steinberg::Vst::ASPiK::PluginEditor::getSize ( ViewRect * size )

overridevirtual

ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

NOTES:

see Designing Audio Effects in C++ 2nd Ed. by Will Pirkle for more information and a VST3 Programming Guide
see VST3 SDK Documentation for more information on this function and its parameters

◆ getWindowFrameSize()

virtual bool Steinberg::Vst::ASPiK::PluginEditor::getWindowFrameSize	(	double &	left,
		double &	top,
		double &	right,
		double &	bottom
	)

inlineoverridevirtual

get the frame size

Implements IGUIWindowFrame.

◆ isPlatformTypeSupported()

tresult PLUGIN_API Steinberg::Vst::ASPiK::PluginEditor::isPlatformTypeSupported ( FIDString type )

overridevirtual

ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

NOTES:

see Designing Audio Effects in C++ 2nd Ed. by Will Pirkle for more information and a VST3 Programming Guide
see VST3 SDK Documentation for more information on this function and its parameters

◆ onSize()

tresult PLUGIN_API Steinberg::Vst::ASPiK::PluginEditor::onSize ( ViewRect * newSize )

overridevirtual

ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

NOTES:

see Designing Audio Effects in C++ 2nd Ed. by Will Pirkle for more information and a VST3 Programming Guide
see VST3 SDK Documentation for more information on this function and its parameters

◆ removed()

tresult PLUGIN_API Steinberg::Vst::ASPiK::PluginEditor::removed ( )

overridevirtual

ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

NOTES:

see Designing Audio Effects in C++ 2nd Ed. by Will Pirkle for more information and a VST3 Programming Guide
see VST3 SDK Documentation for more information on this function and its parameters

◆ setFrame()

tresult PLUGIN_API Steinberg::Vst::ASPiK::PluginEditor::setFrame ( IPlugFrame * frame )

overridevirtual

ASPiK support VST3 GUI - this wraps the ASPiK GUI so that it conforms to the IPlugView interface.

NOTES:

see Designing Audio Effects in C++ 2nd Ed. by Will Pirkle for more information and a VST3 Programming Guide
see VST3 SDK Documentation for more information on this function and its parameters

◆ setWindowFrameSize()

virtual bool Steinberg::Vst::ASPiK::PluginEditor::setWindowFrameSize	(	double	left = `0`,
		double	top = `0`,
		double	right = `0`,
		double	bottom = `0`
	)

inlineoverridevirtual

set the frame size

Implements IGUIWindowFrame.

The documentation for this class was generated from the following files:

C:/RackAFX_v7/ASPIK_Doxygen/PluginTemplate/project_source/source/vst_source/vst3plugin.h
C:/RackAFX_v7/ASPIK_Doxygen/PluginTemplate/project_source/source/vst_source/vst3plugin.cpp

Public Types

Public Member Functions

Public Attributes

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PluginEditor()

◆ ~PluginEditor()

Member Function Documentation

◆ attached()

◆ getSize()

◆ getWindowFrameSize()

◆ isPlatformTypeSupported()

◆ onSize()

◆ removed()

◆ setFrame()

◆ setWindowFrameSize()
